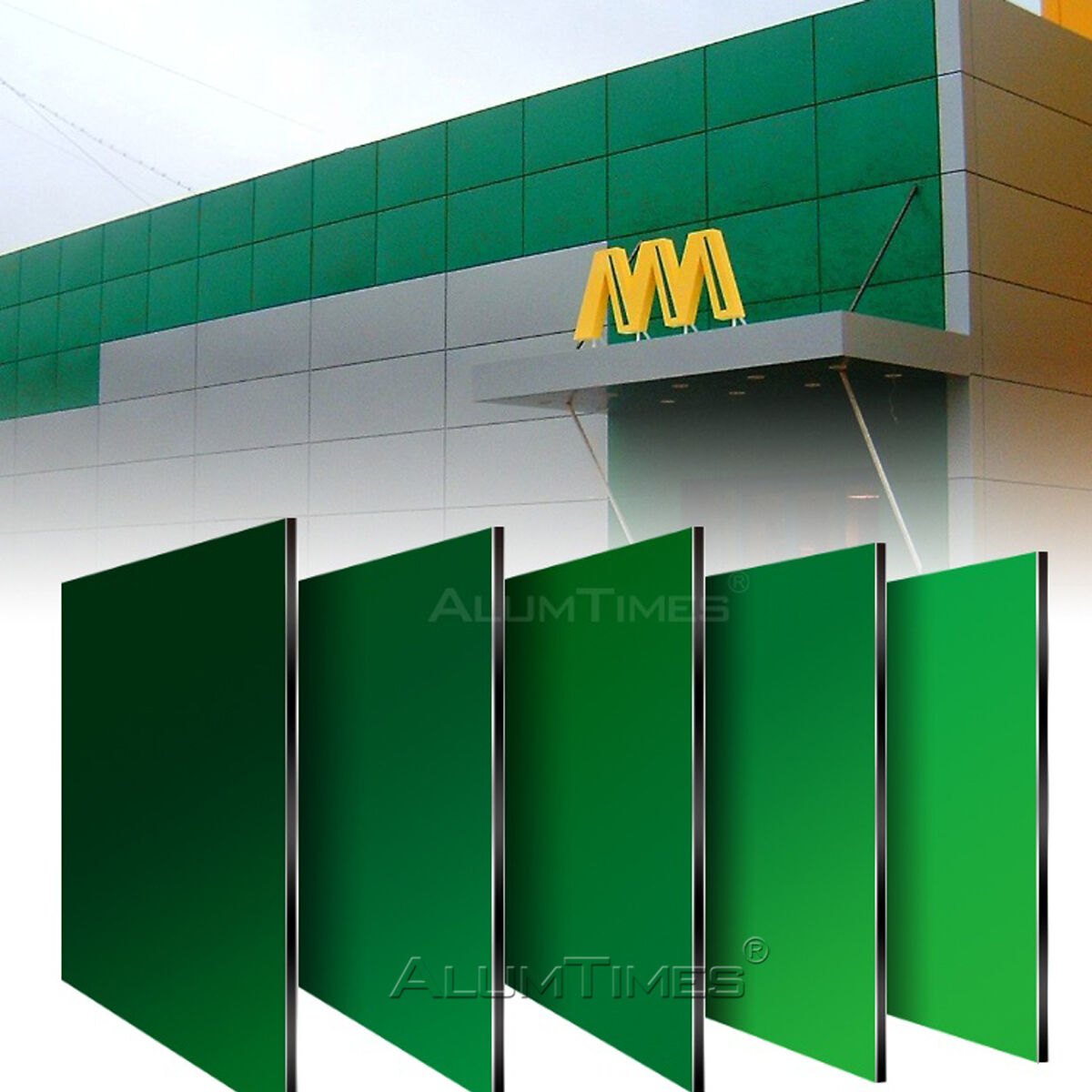

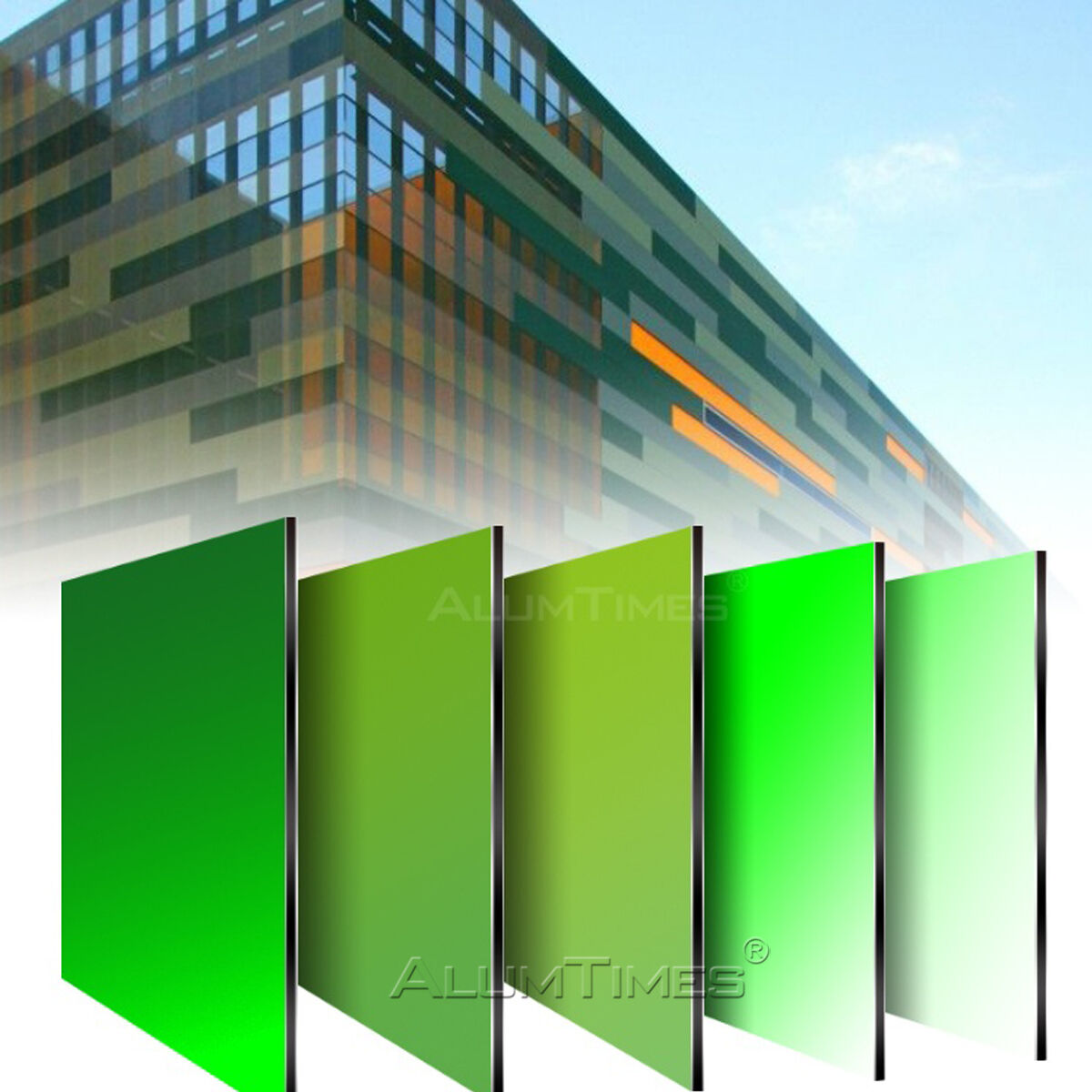

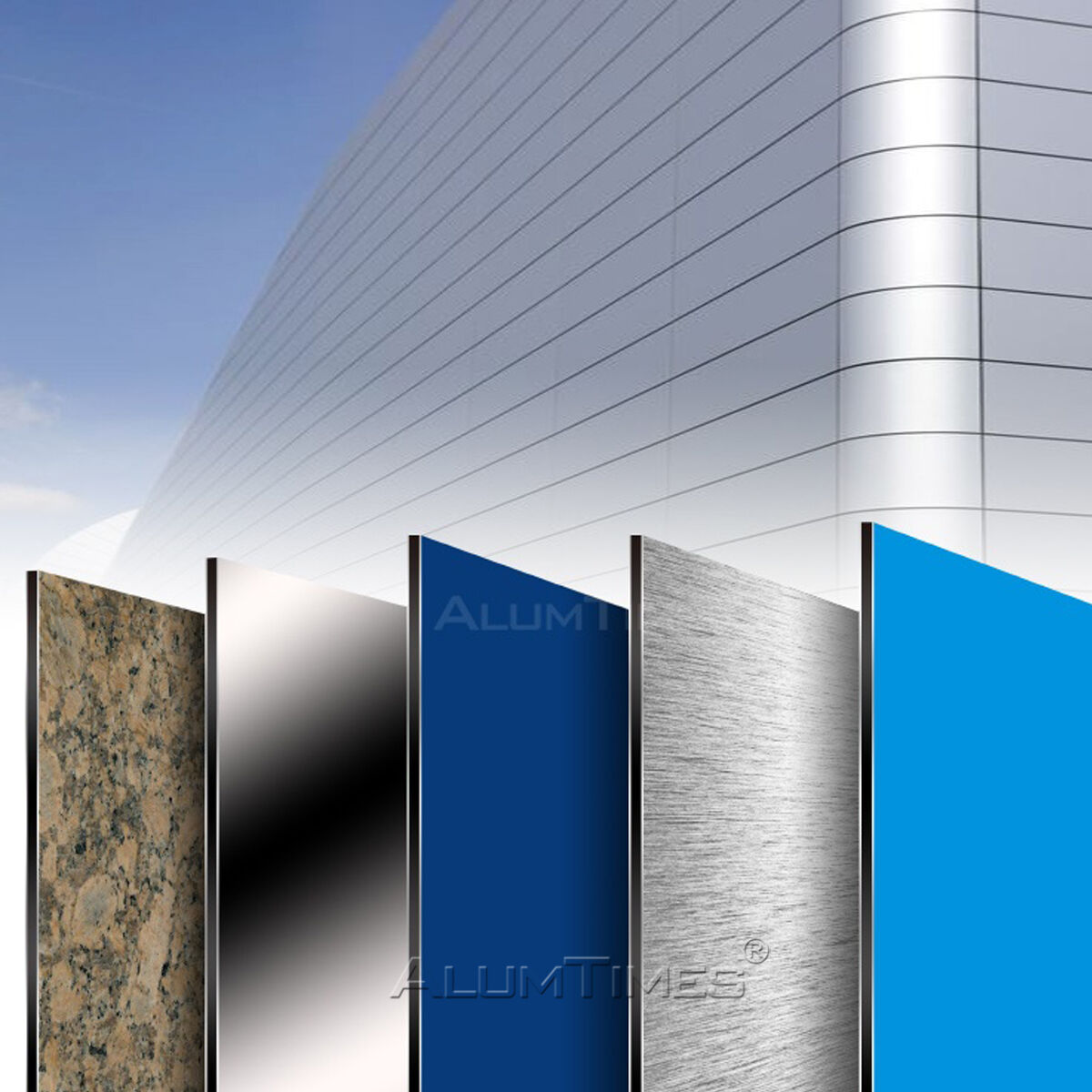

ACP 4mm PVDF Modern Warehouse Exterior Wall Cladding Aluminum Composite Panel
Designed specifically for modern architectural needs, aluminum composite panels (ACP) combine a lightweight core with outstanding rigidity, durability and corrosion resistance. These panels can be fully customized in terms of color and surface treatment, providing excellent weather resistance and long-term performance for various building envelope structures.
Description
|Aluminium Composite Panel Quick Details
1: Material:
A:Front : aluminium alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer.
B: Core: non-toxic Low Density Polyethylene.
C: Back: aluminium alloy sheet coated with polyester resin painting.
D: Surface Coating Thickness: 32 ± 1 μ.
E: Aluminium alloy: 3003 H24.
F:Sheet thickness: 0.3mm, 0.4mm, 0.5mm .
2: Dimensions:
A: Thickness: 3mm,4mm,6mm,8mm,10mm.
B: Width: 1220mm, 1250mm, 1500mm, 1570mm, 1800mm, 2000mm(max).
C: Length: 2440mm,3050mm, 3200mm( max:6000mm).
D: Weight: 5.5kg/SQM based on 0.5/4mm thickness.
E：Standard size:1220*2440mm.
F：Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G：Non-standard sizes are available upon request.
3：Standard:
A：West Europe standard ( Germany DIN Standard).
B：The EAST Europe standard ( Russian standard ).
C：The Commonwealth standard (U.K BS Standard ).
D:The North America ASTM standard.
4: Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes.
Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.
5: Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
|
|
Alumtimes ACP |
Aluminium |
||
Flexural Rigidity (EI) |
Section modulus |
Thickness |
Weight |
Thickness |
Weight |
1250 kN·m²/m |
1.25 cm³/m |
3 mm |
4.5 kg/m² |
2.7 mm |
7.3 kg/m² |
2400 kN·m²/m |
1.75 cm³/m |
4 mm |
5.5 kg/m² |
3.32 mm |
8.9 kg/m² |
6: Alumtimes® ACP Physical Properties for Panel:
Panel density |
5.5 kg/m² |
Peel Strength |
Average 7.0 N/mm |
Tensile Strength |
52.5 Mpa |
Flexural Strength |
100.0 Mpa |
Shear Strength |
28.1 Mpa |
|Customizable：
|Product Application:
|Production Process：
|Packaging & Shipping：
Basic Protection: We apply a protective coating to the aluminum plate’s decorative surface and add a layer of bubble cotton to ensure its safe delivery.
Premium Safety: Opt for our premium packaging, which involves a film on the decorative surface, Blue corner pads at the corners, Bubble cotton wrapping, And placement in a durable laminated wooden box for maximum protection.
We offer two types of transportation services: sea transportation and shipping. We are well-versed in the customs policies and customs declaration regulations of various countries around the world. We provide a stable, Fast, Economical, Safe and Reliable service experience. By integrating high-quality shipping routes worldwide and high-quality land transportation networks both domestically and internationally, We have become the carrier for cross-regional and cross-border transportation of goods, And have become your reliable global supply chain partner.
