A2 B1 Fireproof Wooden & Stone Aluminum Composite Panel ACP

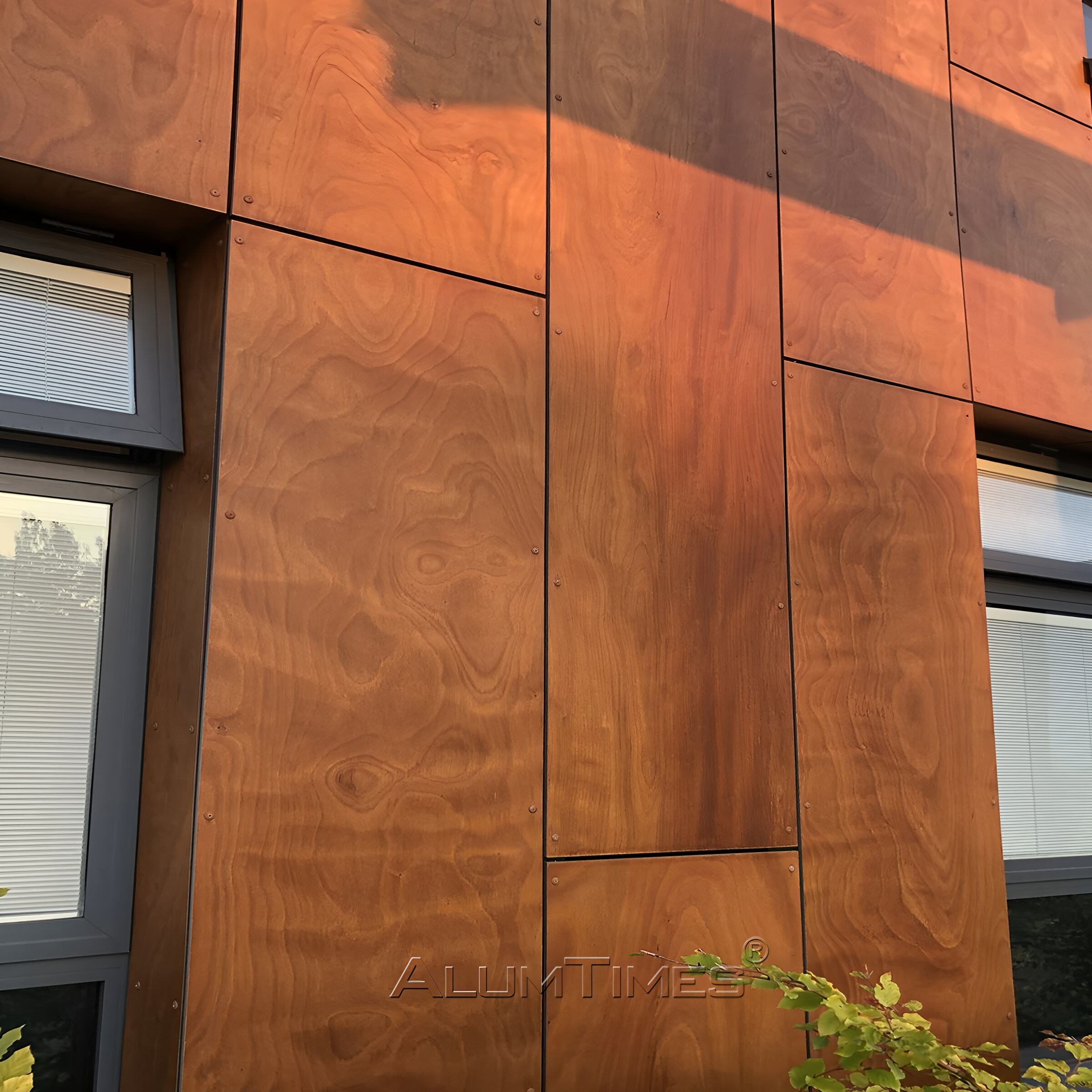

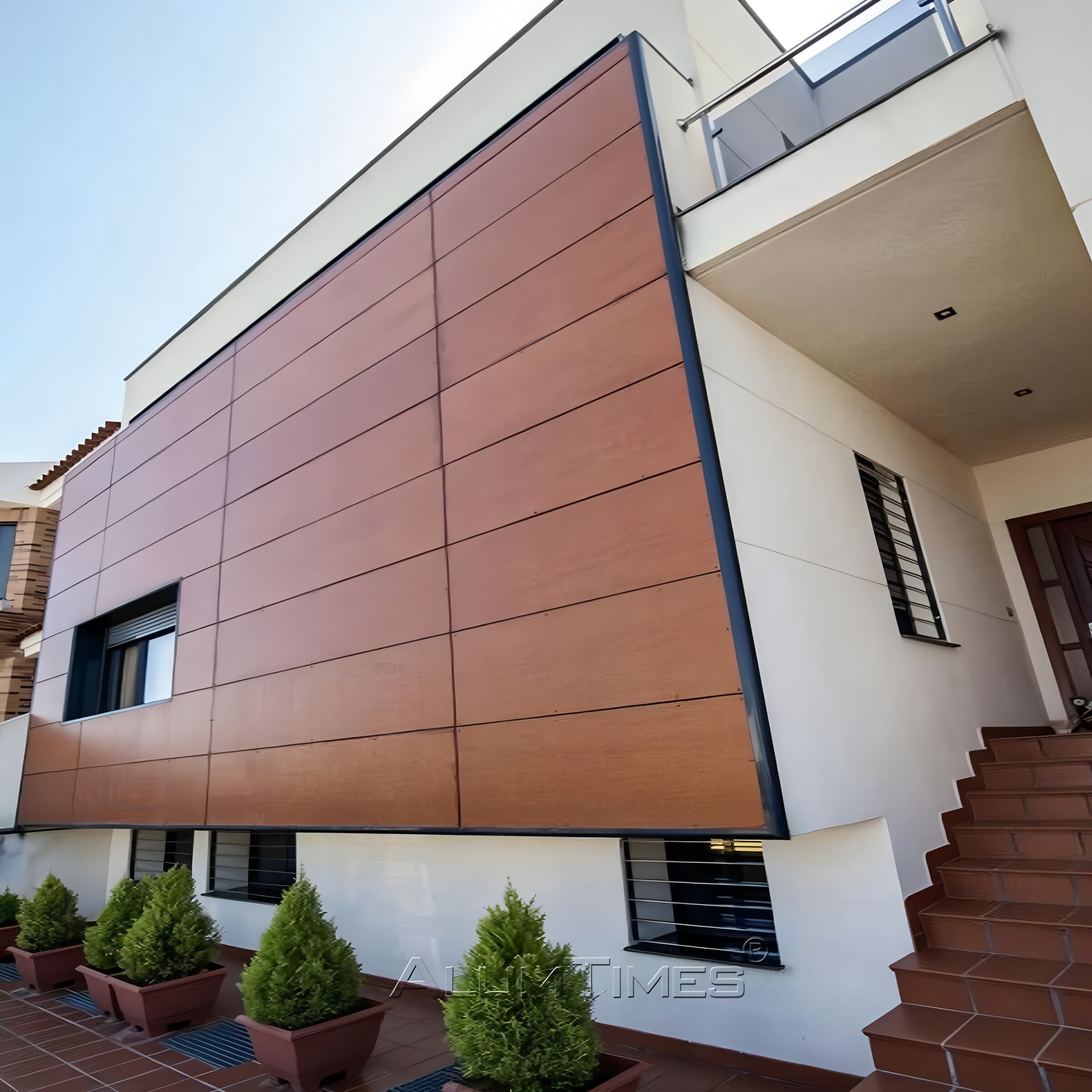

By adopting high-definition technology, the wood grain is perfectly replicated. Each piece of the board has its own unique texture, giving the cold building a natural breathing sensation and completely eliminating the color differences and monotony of traditional materials.

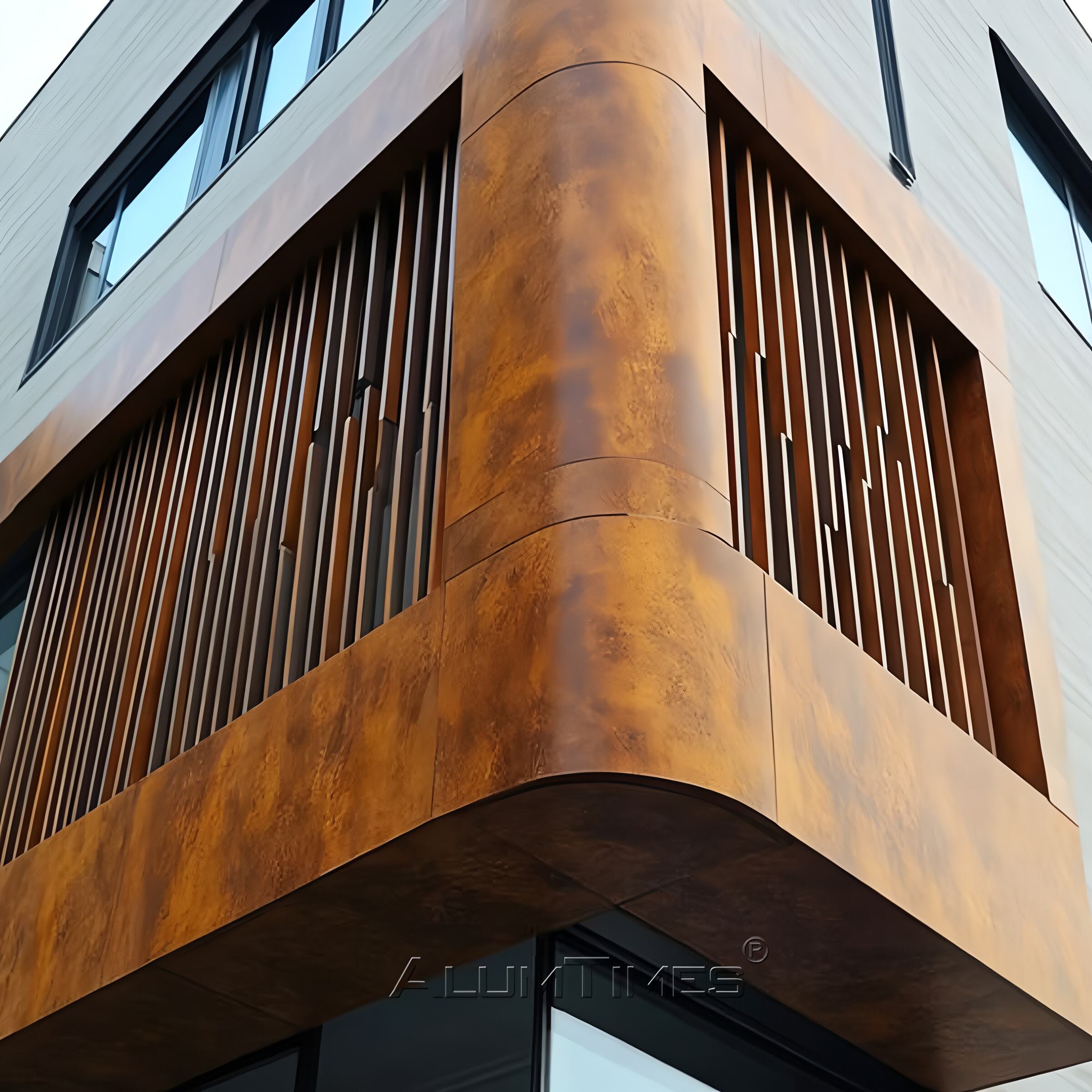

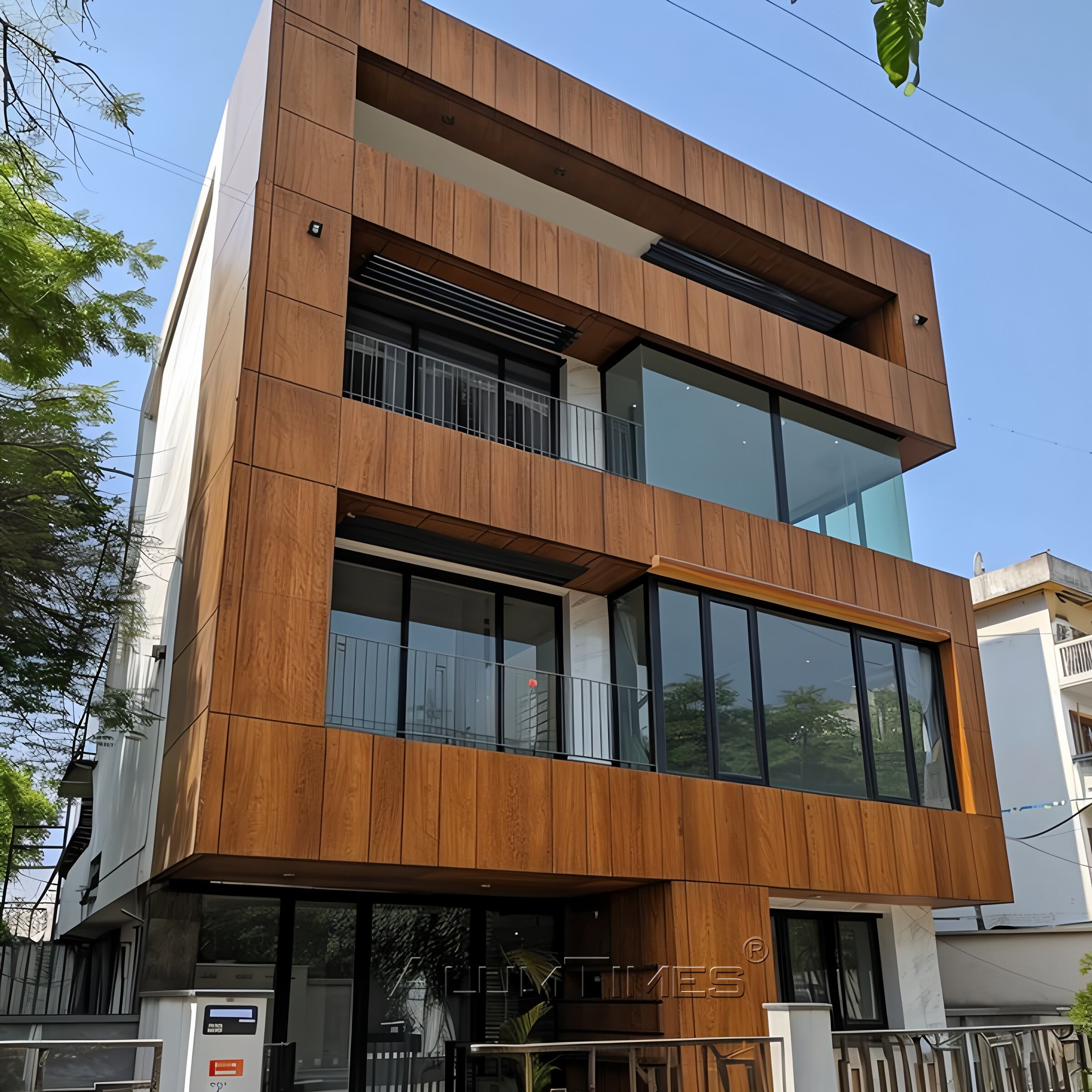

Underneath the aesthetic appearance of wood and stone, there is A2 or B1 level fire resistance. This means that when designing high-rise hotels or commercial complexes, you don't have to choose between the appearance and safety.
The surface is covered with a highly weather-resistant PVDF fluorocarbon coating, which can maintain bright colors and be cleaned by rainwater. There is no need for waxing or anti-corrosion treatment, significantly reducing the maintenance costs throughout the entire life cycle of the building.
Description
|Aluminium Composite Panel Quick Details
1: Material:
A:Front : aluminium alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer.
B: Core: non-toxic Low Density Polyethylene.
C: Back: aluminium alloy sheet coated with polyester resin painting.
D: Surface Coating Thickness: 32 ± 1 μ.
E: Aluminium alloy: 3003 H24.
F:Sheet thickness: 0.3mm, 0.4mm, 0.5mm .
2: Dimensions:
A: Thickness: 3mm, 4mm, 6mm, 8mm, 10mm.
B: Width: 1220mm, 1250mm, 1500mm, 1570mm, 1800mm, 2000mm(max).
C: Length: 2440mm, 3050mm, 3200mm ( max:6000mm).
D: Weight: 5.5kg/SQM based on 0.5/4mm thickness.
E：Standard size:1220*2440mm.
F：Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G：Non-standard sizes are available upon request.
3：Standard:
A：West Europe standard ( Germany DIN Standard).
B：The EAST Europe standard ( Russian standard ).
C：The Commonwealth standard (U.K BS Standard ).
D:The North America ASTM standard.
4: Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes.
Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.
5: Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
|
|
Alumtimes ACP |
Aluminium |
||
Flexural Rigidity (EI) |
Section modulus |
Thickness |
Weight |
Thickness |
Weight |
1250 kN·m²/m |
1.25 cm³/m |
3 mm |
4.5 kg/m² |
2.7 mm |
7.3 kg/m² |
2400 kN·m²/m |
1.75 cm³/m |
4 mm |
5.5 kg/m² |
3.32 mm |
8.9 kg/m² |
6: Alumtimes® ACP Physical Properties for Panel:
Panel density |
5.5 kg/m² |
Peel Strength |
Average 7.0 N/mm |
Tensile Strength |
52.5 Mpa |
Flexural Strength |
100.0 Mpa |
Shear Strength |
28.1 Mpa |
|Customizable：
|Product Application:
|Production Process：
|Packaging & Shipping：
Basic Protection: We apply a protective coating to the aluminum plate’s decorative surface and add a layer of bubble cotton to ensure its safe delivery.
Premium Safety: Opt for our premium packaging, which involves a film on the decorative surface, Blue corner pads at the corners, Bubble cotton wrapping, And placement in a durable laminated wooden box for maximum protection.
We offer two types of transportation services: sea transportation and shipping. We are well-versed in the customs policies and customs declaration regulations of various countries around the world. We provide a stable, Fast, Economical, Safe and Reliable service experience. By integrating high-quality shipping routes worldwide and high-quality land transportation networks both domestically and internationally, We have become the carrier for cross-regional and cross-border transportation of goods, And have become your reliable global supply chain partner.
|Aluminum Perforated Panel FAQ
Q:Can I get a sample?
A:Yes we offer free samples. Delivery cost is to be paid by clients.
Q:What is delivery time?
A:15-30days after deposit, Except for public holidays.
Q:How can you guarantee the quality?
A:We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC.
Q:Can you provide OEM service?
A:Yes,we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.
Q:Why can I trust you and place order with you?
A:1998 to 2018 Alumtimes is with 20 years experience in this industry, we have served clients from more than 100 countries, Alumtimes is well-known for its quality and Alumtimes team win clients' trust by honesty and down to earth business style.
